55SE3D

SE3D Series

Global  Share

Key Feature

  • Edge-lit LED
  • Brightness: 350 cd/m²
  • Bezel: T/L/R 11.9 mm, B 18.0 mm
  • Depth: 38.6 mm
  • HDMI (2) / DVI / RGB / RJ 45, RS232C in/out, USB 2.0
1530853924450_24771

Sleek Design

Slimmer Bezel & Depth

The thinner bezel & depth allows a perfect fit for a sleek look.
1530853990275_62238

Sleek Design

Detachable Logo

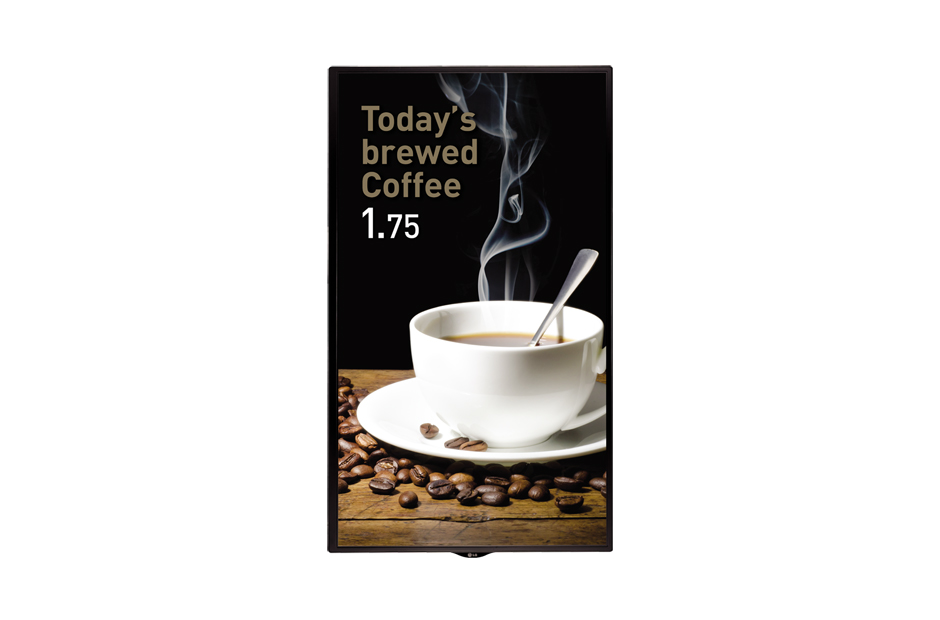

Portrait mode allows the logo to be positioned in the desired setting.
1530854099894_18784

Sleek Design

Cable Management

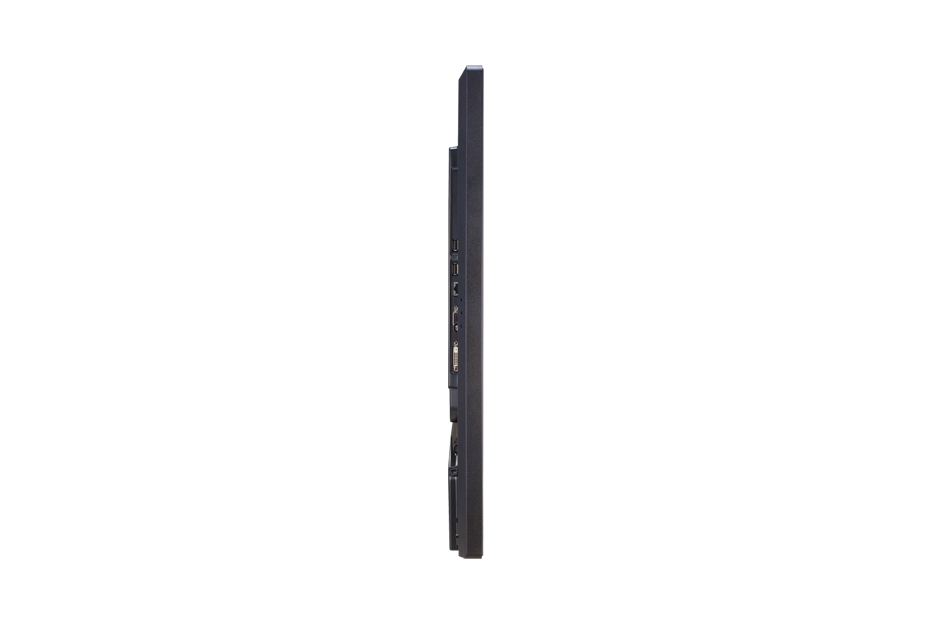

The well-organized cable terminals in the back optimize available space.
1530854185711_32381

USB Content Management

USB Content Scheduling

Play and schedule contents with a USB connection-no server connection required.
1530854301274_83742

Dust & Humidity Protection

Conformal Coating

Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
1530854389469_20418

Convenient Management

Enhanced Connectivity

Through its diverse interface, the signage lets you connect more than one device for optimal use.
1530854516944_56370

Convenient Management

Wi-Fi Support

SE3D Series supports Wi-Fi USB dongle connection for convenient content distribution. And SNMP support ensures convenient network management.
1530854699030_26033

Convenient Screen Mode

Aspect Ratio Sustainability*

Sustain the same resolution and picture quality while powering on/off by receiving EDID 1) through switch IC.
1530854798036_76841

Convenient Screen Mode

Stand-by Screen*

Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.
1530854915250_07017

Convenient Screen Mode

Scheduled Screen Wash**

Prevent residual images with the screen transition feature.

Tech Spec

  • Panel

    Panel spec
    Screen Size 55"
    Resolution 1,920 x 1,080 (FHD)
  • Connectivity

    Connectivity spec
    Input HDMI (2), DVI-D, RGB, Audio in, USB 2.0
    Output Audio out, External Speaker out
    External Control RS232C (In/Out), RJ45, IR Receiver
  • Physical Specification

    Physical Specification spec
    Bezel Width 11.9 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D) 1,238 x 714.9 x 38.6 mm
    Weight (Head) 17.3 kg
    VESA™ Standard Mount Interface 300 x 300 mm
  • Environment Conditions

    Environment Conditions spec
    Operation Temperature 0°C to 40°C
    Operation Humidity 10 % to 80 %
  • Power

    Power spec
    Power Supply 100-240V~, 50/60Hz
    Power Type Built-In Power
  • Power Consumption

    Power Consumption spec
    Typ. 70 W
    Smart Energy Saving 55 W
  • Standard (Certification)

    Standard (Certification) spec
    Safety UL / cUL / CB / TUV / KC
    EMC FCC Class "A" / CE / KCC
    ErP / Energy Star NA / Yes (Energy Star 7.0)
  • Media Player Compatibility

    Media Player Compatibility spec
    External Media player Attatchable Yes (MP500/MP700)
    OPS type compatible No
  • Software Compatibility

    Software Compatibility spec
    Content Management Software SuperSign W
    Control and Monitoring Software SuperSign C
  • Accessory

    Accessory spec
    Basic Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
    Optional Speaker (SP-5000), Stand (ST-492T), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S)
