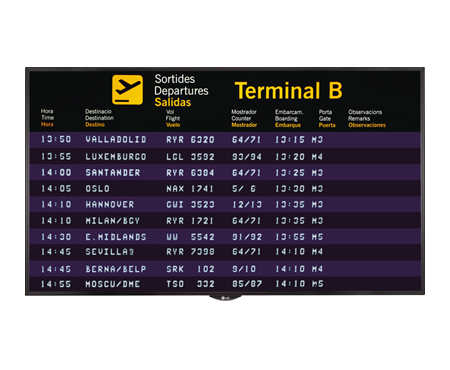

940x620 ID_SH7DB_Gallery_01

55SH7DB

SH7DB Series

Global  Share

Key Feature

  • Brightness : 700 cd/m²
  • Bezel : Top/Left/Right/Bottom 7.4mm
  • Depth : 31.7mm
  • Special : Wi-Fi Dongle Ready, SuperSign W/C/M
  • Local Time Auto Setting
  • DP/HDMI/DVI/RGB/RS232C/RJ45/IR (DP1.2 daisy-chain)
1530747912861_08427

Narrow Even Bezel

Slim, Sleek and stylish design, SH7DB has advantages for portrait and video wall scene
1530747942933_23223

OPS &HDBaseT Compatibility

The SH7DB provides an OPS Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.
ID_QRcode_M03_1461223844093

LG C-Display
Customer App

Download and check latest product information along with reference, video wall configurator, manual and contact information.

Tech Spec

  • Panel

    Panel spec
    Screen Size 54.64" (1387.80mm) diagonal
    Resolution 1,920 x 1,080 (FHD)
    Brightness (Typ.,Module) 700
  • Physical Specification

    Physical Specification spec
    Bezel Width 7.4mm (T/L/R/U even)
    Monitor Dimension (W x H x D) 123.0cm X 71.4cm X 3.2cm
    Weight (Head) 27.0kg
    VESA™ Standard Mount Interface 400mm x 400mm
  • Media Player Compatibility

    Media Player Compatibility spec
    OPS type compatible Yes
    External Media player Attatchable Yes (MP500/MP700)
  • Software Compatibility

    Software Compatibility spec
    SuperSign-c Yes
    SuperSign-w lite Yes
  • Accessory

    Accessory spec
    Basic Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
    Optional SP-2100 (External Speaker), ST-200T, LSW440S, AN-WF500 (WiFi USB Dongle), KT-OPSA (OPS Kits), KT-SP0 (Pixel Sensor)
  • Connectivity - Output

    Connectivity - Output spec
    External Control (RS232C OUT) Yes (1)
    Externel Speaker Out Yes (1, L/R)
    Audio Out Yes
    DP Out Yes
  • General Features

    General Features spec
    Region Global
  • Connectivity - Intput

    Connectivity - Intput spec
    USB Yes (1)
    External Control (RJ45) Yes (1)
    DP Yes (1)
    External Control (IR receiver) Yes (1)
    Analog (RGB) Yes (1)
    HDMI Yes (1)
    Audio Yes (1)
    DVI Yes (1)
    External Control (RS232C(Phone Jack Type)) Yes (1)
    External Control (Pixel Sensor(Optional)) Yes
