65UH5C

UH5C Series

Global  Share

Key Feature

  • Brightness : 500 cd/m²
  • Bezel : 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
  • Depth : 40.1 mm
  • Interface : HDMI / DVI / DP / RGB / RJ45 / IR / RS232C / SD Card / USB
1530749737304_53405

UHD Resolution & HEVC

Outstanding Picture Quality

UHD large screen delivers immersive viewing with four times higher definition than FHD. UH5C ensures stable UHD video playback with HEVC (High Efficiency Video Coding) and double the data compression ratio of H.264.
1530749901389_83753

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.
1530749971429_25525

USB Content Scheduling

Simply Play and Schedule Content

There is no need for additional server or media player connections as UH5C supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB. * Image is for illustration-purposes only.
1530750104730_61336

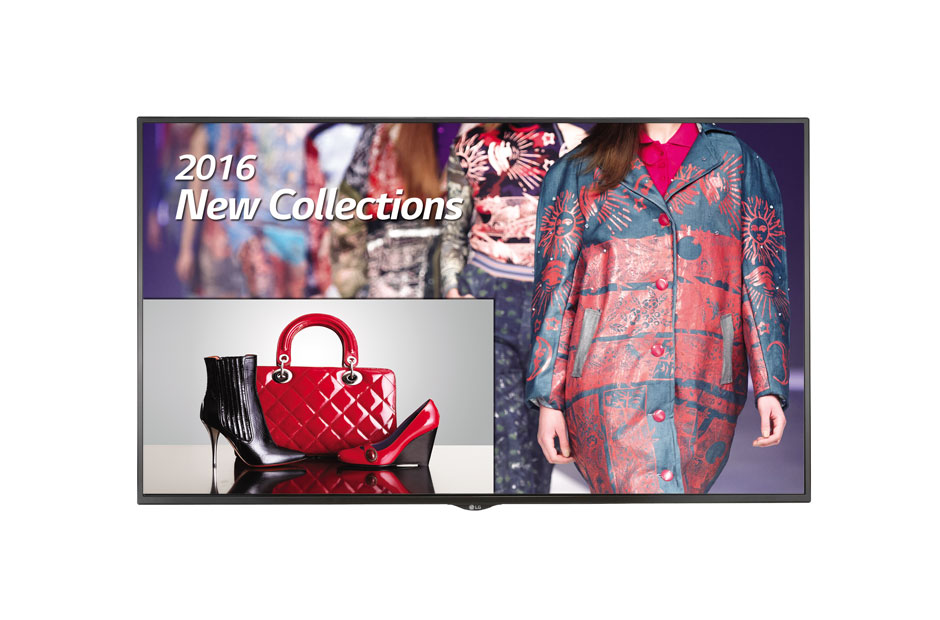

PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
1530750215452_64046

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.
1530750269001_73286

Wireless Solutions

Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.
1530750329433_54605

SNMP Support

Real-Time Remote Monitoring

In case of malfunctions or errors, real-time remote care is available. When an alarm occurs, an e-mail notification is sent using SuperSign SW or SI SW via the SNMP Protocol.
1531180662091_30403

Embedded Group Manager

Easy Content Management

The LG group manager allows users to distribute content and set data on a selected group within the same network without the need for a separate PC or a server.
* Image is for illustration-purposes only. * All devices must be connected to in the same network.
1530750518090_33274

OPS/HDBaseT Connectivity

High Compatibility

UH5C provides an optional OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.

Tech Spec

  • Panel

    Panel spec
    Screen Size 65"
    Brightness 500
    Resolution 3,840 x 2,160 (UHD)
  • Connectivity

    Connectivity spec
    Input HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
    Output DP, Audio, Externel Speaker Out
    External Control RS232C, RJ45, IR Receiver, Pixel Sensor
  • Physical Specification

    Physical Specification spec
    Bezel Width 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
    Monitor Dimension (W x H x D) 1,458.6 x 848.9 x 40.1 mm
    Weight (Head) 26.0 kg
  • Environment Conditions

    Environment Conditions spec
    Operation Temperature 0°C to 40°C
    Operation Humidity 10 % to 80 %
  • Power

    Power spec
    Power Supply 100-240V~, 50/60Hz
    Power Type Built-In Power
  • Power Consumption

    Power Consumption spec
    Typ. 134 W
    Smart Energy Saving 90 W
  • Standard (Certification)

    Standard (Certification) spec
    Safety UL / cUL / CB / TUV / KC
    EMC FCC Class "A" / CE / KCC
    ErP / Energy Star NA / EPA7.0
  • Media Player Compatibility

    Media Player Compatibility spec
    External Media player Attatchable Yes (MP500/MP700)
    OPS type compatible Yes
  • Software Compatibility

    Software Compatibility spec
    SuperSign-c Yes
    SuperSign-w lite Yes
  • Accessory

    Accessory spec
    Basic Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional Speaker (SP-5200), Stand (ST-651T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
