UHD Resolution & HEVC
Outstanding Picture QualityUHD large screen delivers immersive viewing with four times higher definition than FHD. UH5C ensures stable UHD video playback with HEVC (High Efficiency Video Coding) and double the data compression ratio of H.264.
Quad Core SoC with webOS
High Performance Smart PlatformQuad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.
USB Content Scheduling
Simply Play and Schedule ContentThere is no need for additional server or media player connections as UH5C supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB. * Image is for illustration-purposes only.

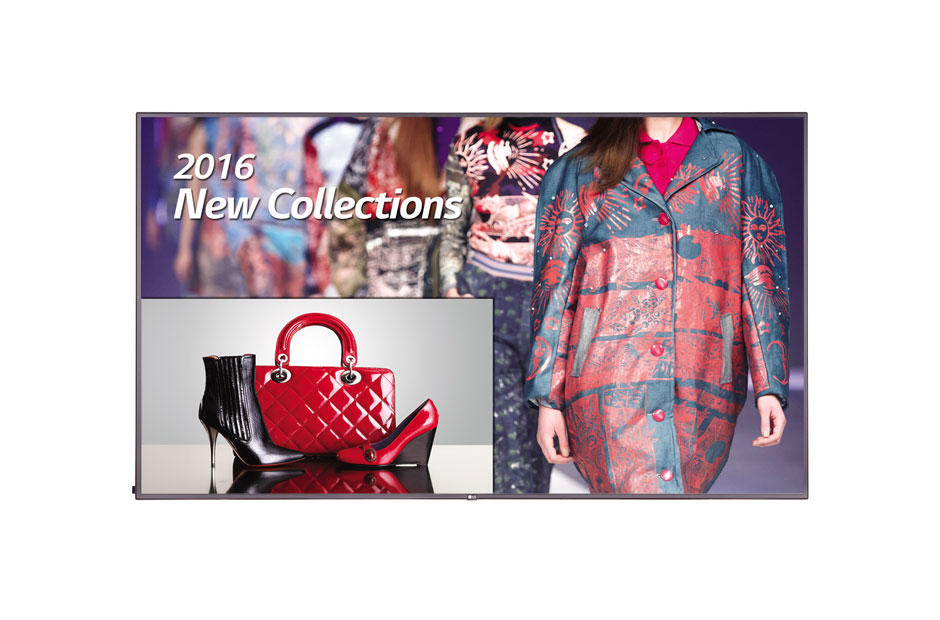

Multiple Screen CompositionPBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to four divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
Content SharingMirroring among devices is more convenient on a Wi-Fi network.
Real-time PromotionWith Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.
Real-Time Remote MonitoringIn case of malfunctions or errors, real-time remote care is available. When an alarm occurs, an e-mail notification is sent using SuperSign SW or SI SW via the SNMP Protocol.

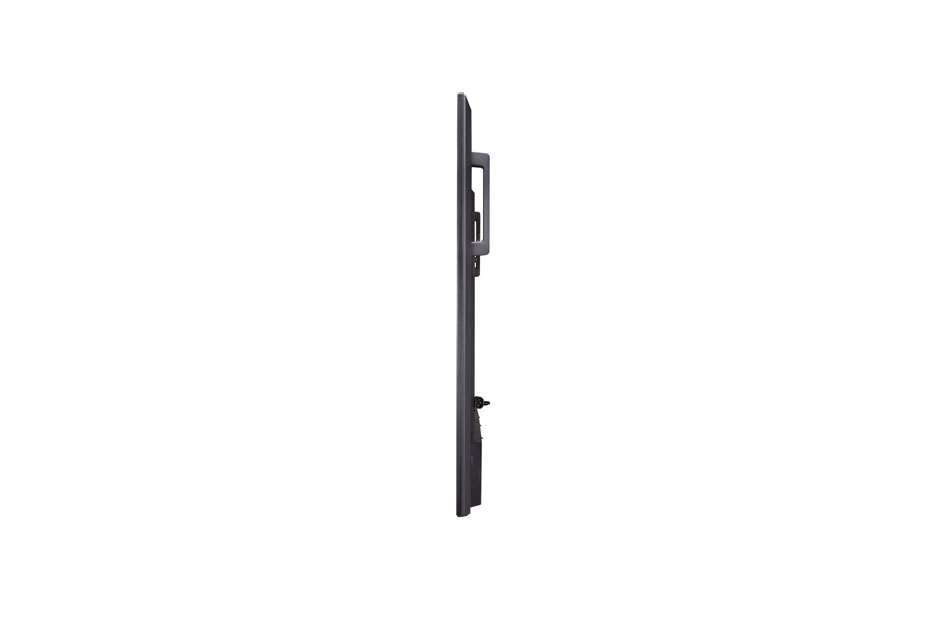

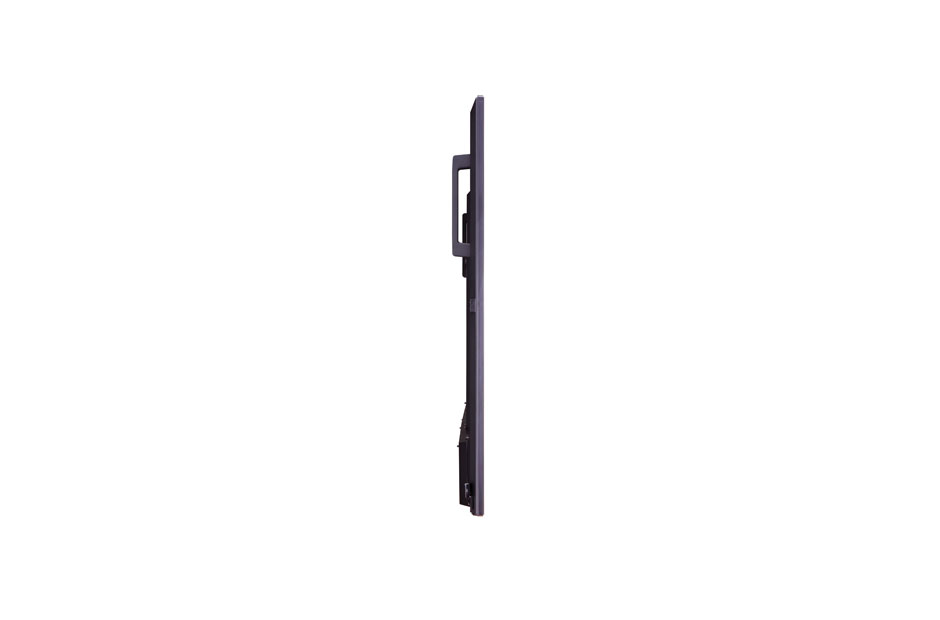

Space Management EfficiencyWith slim depth and built-in speaker for space efficiency, users don't need to install an additional media player. Also, users can easily move the display using its back-side handle. *57.9mm (75"), 60.6mm (86") depth
High CompatibilityUH5C provides an optional OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.
Panel spec Screen Size 75 Brightness 500 Resolution 3,840 x 2,160 (UHD)
Connectivity spec Input HDMI, DP, DVI-D, Audio, USB 3.0, SD Card Output DP, Audio External Control RS232C, RJ45, IR Receiver, Pixel Sensor
Physical Specification spec Bezel Width 14.9mm Monitor Dimension (W x H x D) 1,682.4 x 960.3 x 57.9mm (without logo / handle) Weight (Head) 41.5kg
Environment Conditions spec Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %
Power spec Power Supply 100-240V~, 50/60Hz Power Type Built-In Power
Power Consumption spec Typ. 240W Smart Energy Saving 170W
Standard (Certification) spec Safety UL / cUL / CB / TUV / KC EMC FCC Class ErP / Energy Star No / No
Media Player Compatibility
Media Player Compatibility spec OPS type compatible Yes External Media player Attatchable Yes (MP500/MP700)
Software Compatibility spec Content Management Software SuperSign W Control and Monitoring Software SuperSign C
Accessory spec Basic Remote Controller (include 2ea batteries), Power Cord, QSG, DP 1.8M, Regulation Book, Phone to RS232C Gender, Memory Cover Optional Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B(Wall Mount), Overlay Touch(KT-T75E)
Screen images are simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.
