75UM3C

UM3C Series

Global  Share

Key Feature

  • Brightness : 350cd/m²
  • Bezel : 14.9 mm Even Bezel
  • Depth : 57.9mm (without logo/handle)
  • Interface : DP / HDMI / DVI / RS232C / RJ45 / Pixel Sensor / SD Card / USB
1530748149212_88640

Outstanding Picture Quality

Ultra HD Resolution

Ultra HD large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD, which enables to describe fine details without distortion. Especially UM3C series ensures stable UHD video playback by supporting HEVC* that offers double data compression ratio at the same level of video quality compared to the conventional H.264.
*HEVC: High Efficiency Video Coding Highly Reliable
1530748181003_33125

Supportive Convenience

Multiple screen by PBP/PIP

PBP (Picture-By-Picture) features multi screen in a single display with upto 4 input sources, thus maximizing the usability of large UHD display. In addition, PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts, so that users can arrange many different usage scenarios efficiently.
1530748219974_28235

Supportive Convenience

USB Contents Playback and Scheduling

Contents can be simply played and scheduled via USB, so additional server connection is not required, enabling easy content management.
1530748257764_08788

Supportive Convenience

Wireless Solution

UM3C series supports wireless services for more optimized user experience with built-in Wi-Fi(802.11n). Mirroring supports sharing contents among devices on a Wi-Fi network and Soft AP makes the display operate as a wireless access point for other digital devices.
1530748295987_75651

Highly Reliable Compatibility

Compatibility for Meeting Room

UM3C series ensures secured compatiblity with AV control Systems for seamless integration and automated control in meeting rooms, boosting business management efficiency.
1530748326632_46701

Highly Reliable Compatibility

OPS / HDBaseT Connectivity

The UM3C provides an OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.
1530748360715_82685

Smart Platform

High-Performance SoC with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player, saving TCO. Due to its internal memory (8GB), pre-loaded contents are displayed without external inputs. In addition, webOS platform enhances user convenience with intuitive UI and simple app development tools.
*System on Chip
1531179369733_40500

Sleek Design

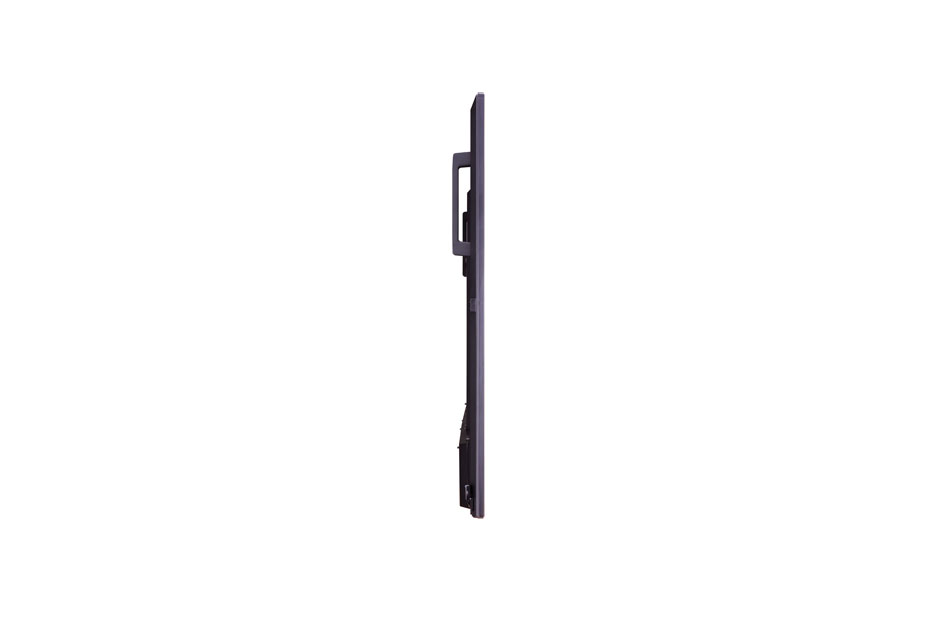

Slim Depth & Even Bezel

The slim depth and even bezel allows an easy installation and a perfect fit for a sleek look.
1530748517884_85676

Sleek Design

Detachable Logo

The detachable logo allows for installation in the desired orientation in landscape or portrait mode.

Tech Spec

  • Panel

    Panel spec
    Screen Size 75"
    Brightness 350
    Resolution 3,840 x 2,160 (UHD)
  • Connectivity

    Connectivity spec
    Input HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
    Output DP, Audio
    External Control RS232C, RJ45, IR Receiver, Pixel Sensor
  • Physical Specification

    Physical Specification spec
    Bezel Width On: 15.8mm, Off: 14.9mm
    Monitor Dimension (W x H x D) 1,682.37 x 960.3 x 57.9mm (without logo / handle)
    Weight (Head) 41.5kg
  • Environment Conditions

    Environment Conditions spec
    Operation Temperature 0°C to 40°C
    Operation Humidity 10 % to 80 %
  • Power

    Power spec
    Power Supply 100-240V~, 50/60Hz
    Power Type Built-In Power
  • Power Consumption

    Power Consumption spec
    Typ. 160W
    Smart Energy Saving 115W
  • Standard (Certification)

    Standard (Certification) spec
    Safety UL / cUL / CB / TUV / KC
    EMC FCC Class "A" / CE / KCC
    ErP / Energy Star NA / No
  • Media Player Compatibility

    Media Player Compatibility spec
    External Media player Attatchable Yes (MP500/MP700)
    OPS type compatible Yes
  • Software Compatibility

    Software Compatibility spec
    SuperSign-c Yes
    SuperSign-w lite Yes
  • Accessory

    Accessory spec
    Basic Remote Controller (include 2ea batteries), Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional Pixel sensor (KT-SP0), Media player, OPS Kit (KT-OPSA), HDBaseT (EB-B100)
