86UH5C

UH5C Series

Global  Share

Key Feature

  • Brightness : 500cd/m²
  • Bezel : 14.7mm Even Bezel
  • Depth : 60.6mm / without logo, handle
  • Interface : DP / HDMI / DVI / RS232C / RJ45 / Pixel Sensor / SD Card / USB
1530750797882_24164

UHD Resolution & HEVC

Outstanding Picture Quality

UHD large screen delivers immersive viewing with four times higher definition than FHD. UH5C ensures stable UHD video playback with HEVC (High Efficiency Video Coding) and double the data compression ratio of H.264.
1530750848906_33615

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.
1530753011729_85225

USB Content Scheduling

Simply Play and Schedule Content

There is no need for additional server or media player connections as UH5C supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB. * Image is for illustration-purposes only.
1530753068842_52206

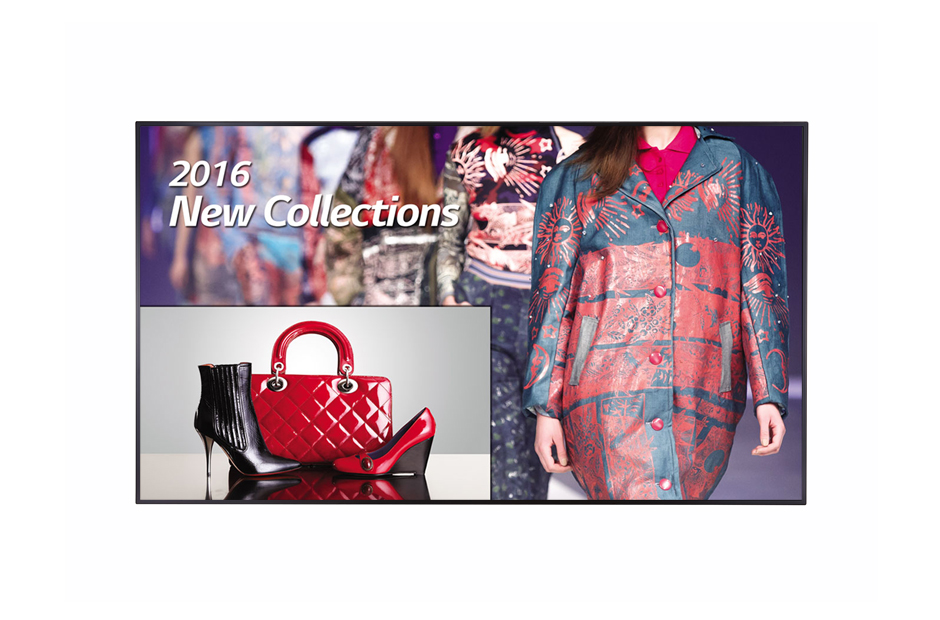

PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to four divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
1530753120822_44384

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.

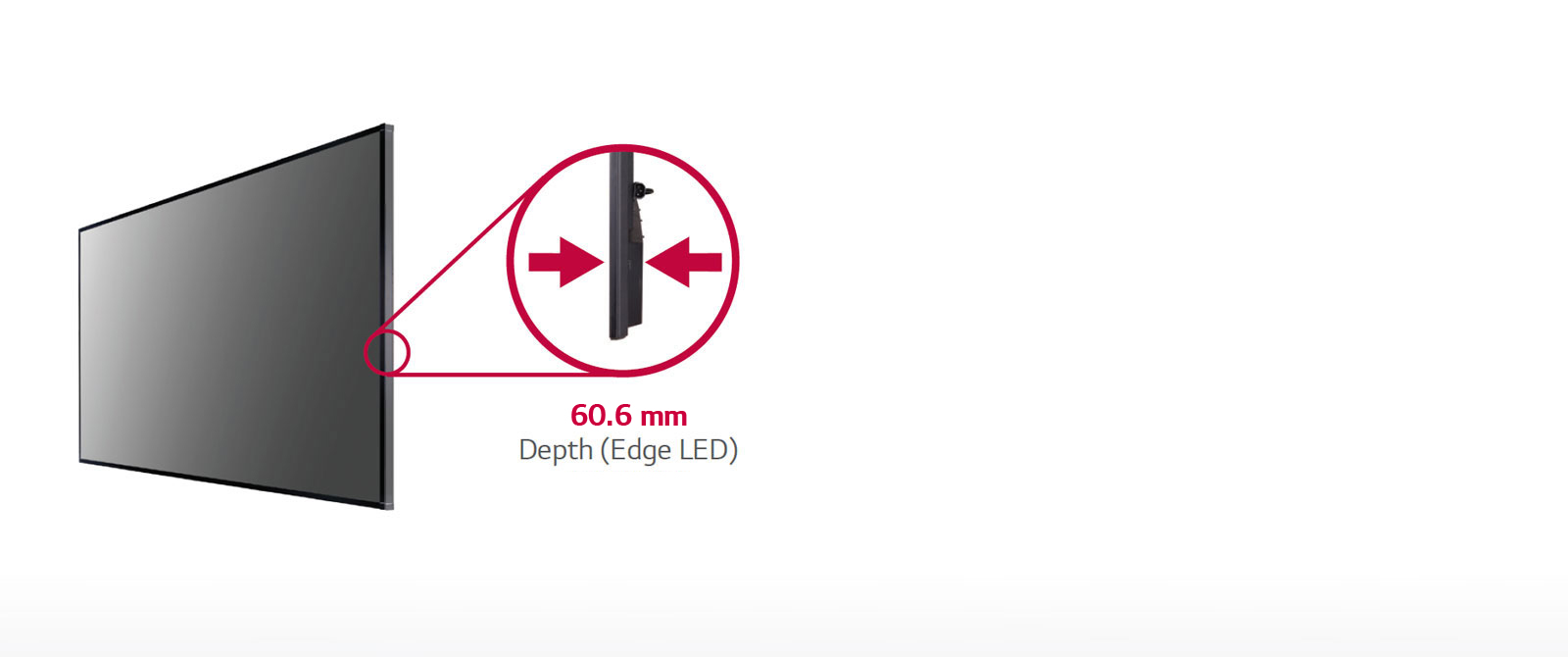

05_Slimmer-Depth_86UH5C_1505873184305

Space Management Efficiency

Slimmer Depth
 With its slim depth and built-in speaker, which increases space effi ciency, you don’t need to install an extra media player. Also, you can move it conveniently with its handle on the back side.
1530753243204_68356

SNMP Support

Real-Time Remote Monitoring

In case of malfunctions or errors, real-time remote care is available. When an alarm occurs, an e-mail notification is sent using SuperSign SW or SI SW via the SNMP Protocol.
1530753298913_42533

Slimmer Depth

Space Management Efficiency

With slim depth and built-in speaker for space efficiency, users don't need to install an additional media player. Also, users can easily move the display using its back-side handle. *57.9mm (75"), 60.6mm (86") depth
1530753352250_00148

OPS/HDBaseT Connectivity

High Compatibility

UH5C provides an optional OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.

Tech Spec

  • Panel

    Panel spec
    Screen Size 86
    Brightness 500
    Resolution 3,840 x 2,160 (UHD)
  • Connectivity

    Connectivity spec
    Input HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
    Output DP, Audio
    External Control RS232C, RJ45, IR Receiver, Pixel Sensor
  • Physical Specification

    Physical Specification spec
    Bezel Width 14.7mm
    Monitor Dimension (W x H x D) 1,926.2 x 1,097.2 x 60.6mm (without logo / handle)
    Weight (Head) 49kg
  • Environment Conditions

    Environment Conditions spec
    Operation Temperature 0°C to 40°C
    Operation Humidity 10 % to 80 %
  • Power

    Power spec
    Power Supply 100-240V~, 50/60Hz
    Power Type Built-In Power
  • Power Consumption

    Power Consumption spec
    Typ. 275W
    Smart Energy Saving 193W
  • Standard (Certification)

    Standard (Certification) spec
    Safety UL / cUL / CB / TUV / KC
    EMC FCC Class
    ErP / Energy Star No / No
  • Media Player Compatibility

    Media Player Compatibility spec
    External Media player Attatchable Yes (MP500/MP700)
    OPS type compatible Yes
  • Software Compatibility

    Software Compatibility spec
    Content Management Software SuperSign W
    Control and Monitoring Software SuperSign C
  • Accessory

    Accessory spec
    Basic Remote Controller (include battery 2ea), Power Cord, QSG, DP cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B(Wall Mount)
