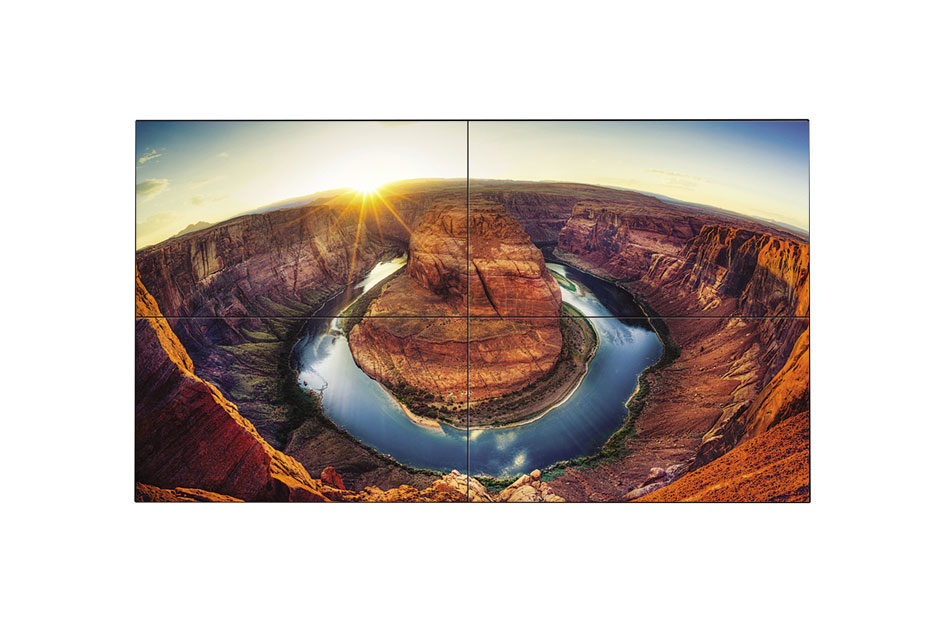

940x620 VM5B_large_01_

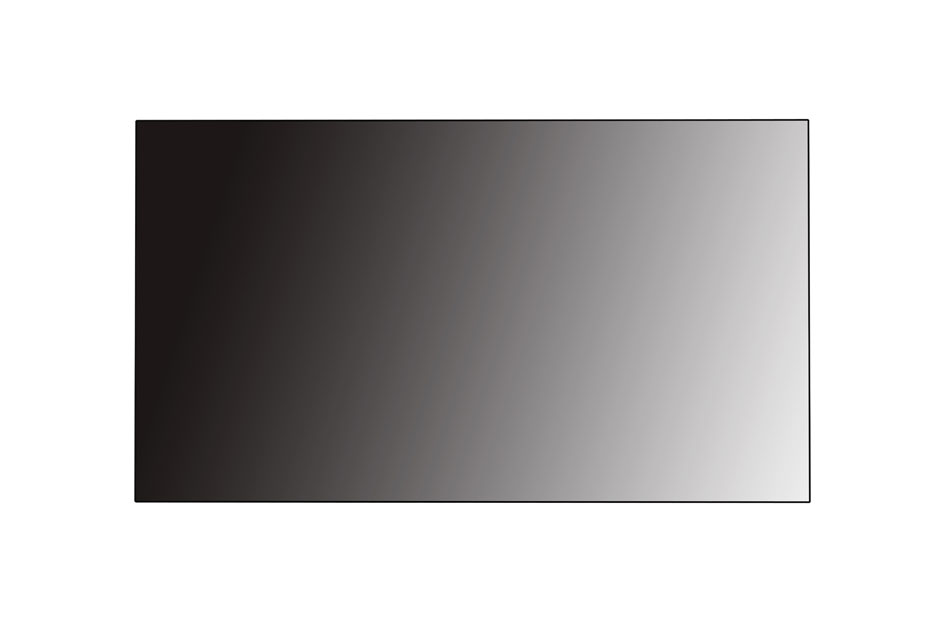

940x620 VM5B_large_02

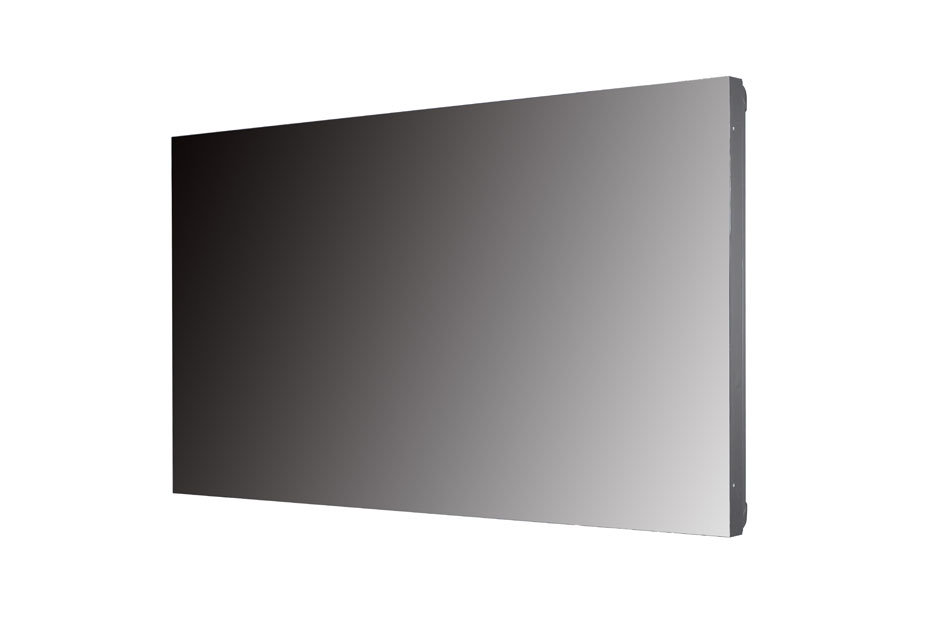

940x620 VM5B_large_03

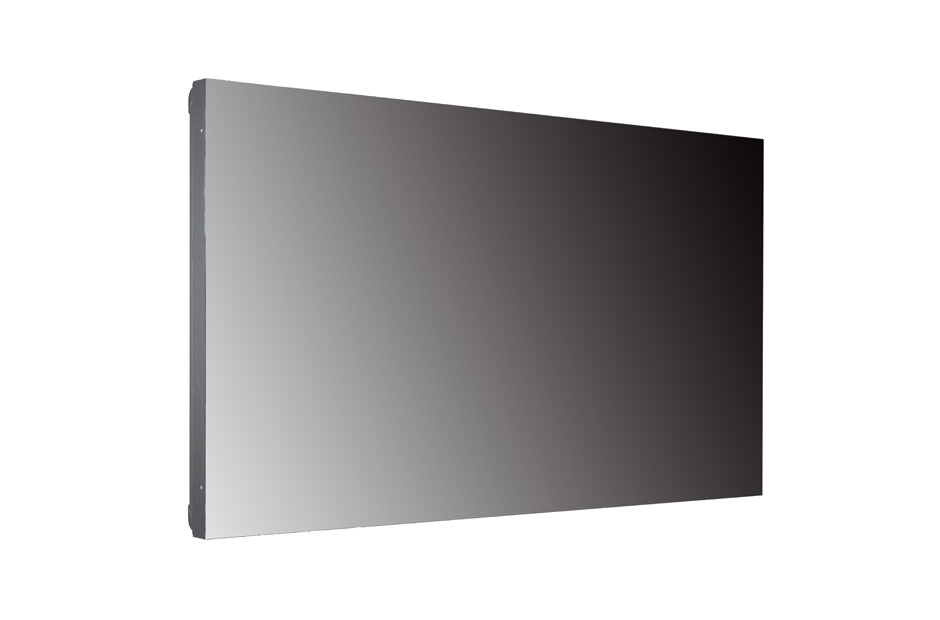

940x620 VM5B_large_04

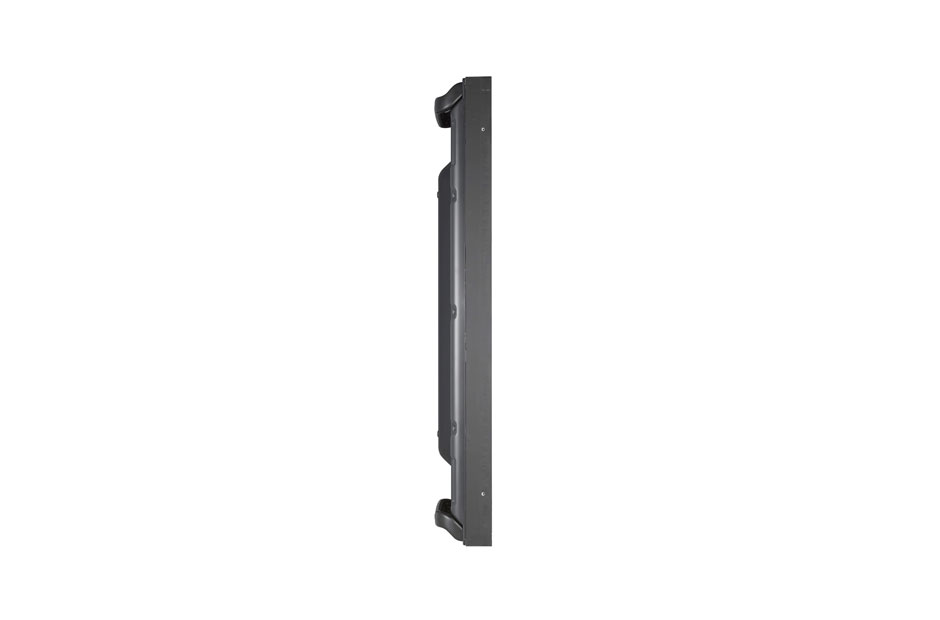

940x620 VM5B_large_05

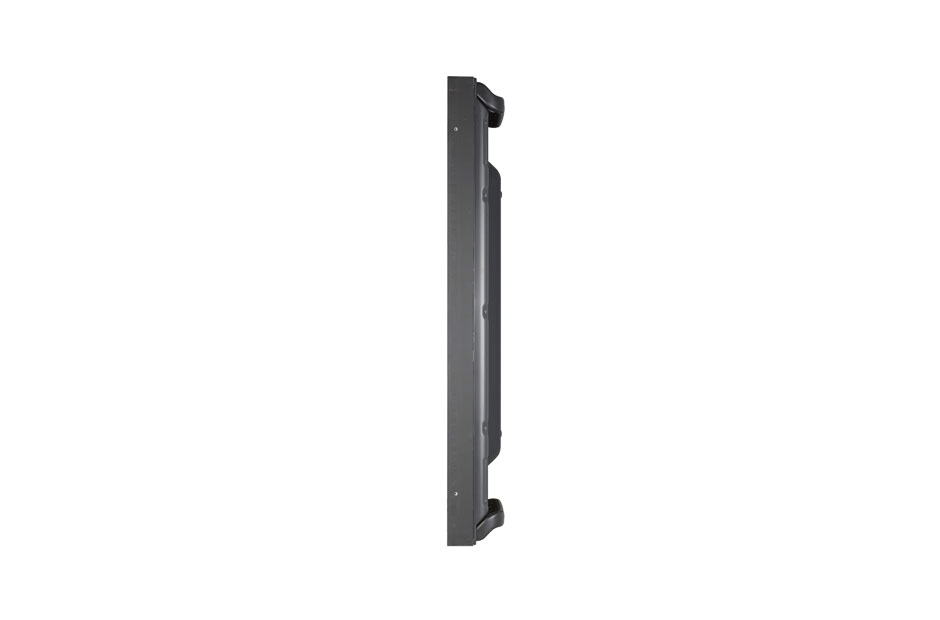

940x620 VM5B_large_06

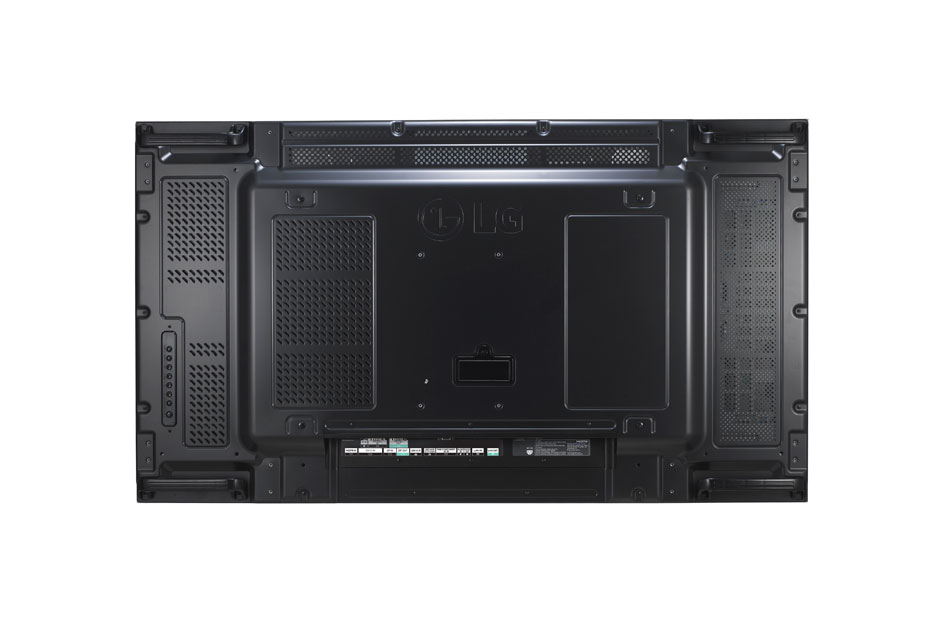

940x620 VM5B_large_07

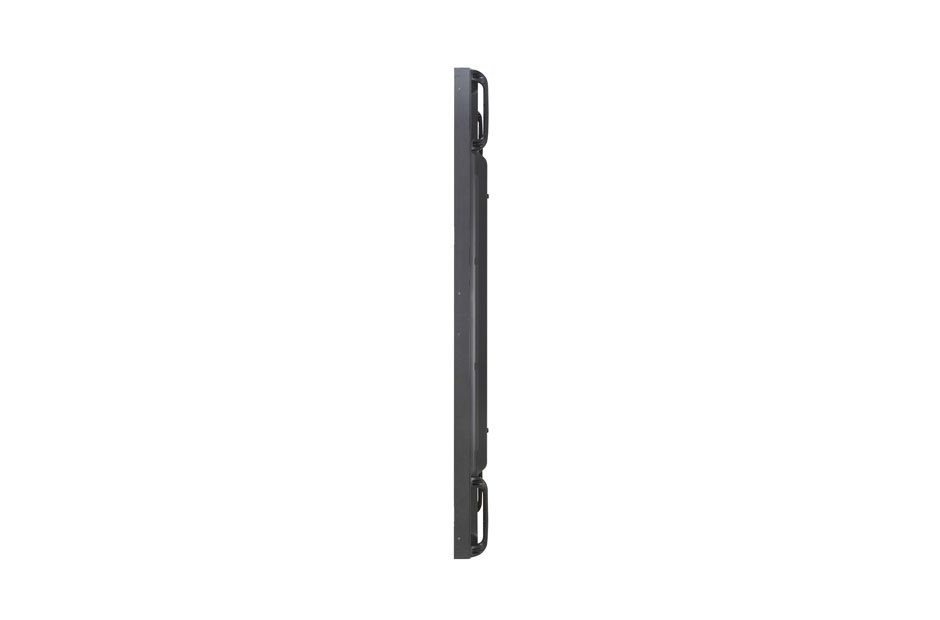

940x620 VM5B_large_08

49VH7C

Artistic Immersion, Overwhelming Attractiveness

Global  Share

Key Feature

  • Brightness : 700cd/m²
  • Surface Treatment : Hard coating (2 H), Anti-glare low reflection treatment of the front polarizer(Haze 3 % (Typ))
  • Bezel : 0.9 mm (T/B/L/R even bezel)
  • Depth : 86.2 mm
  • Interface : HDMI / DVI / RGB / IR, Daisy-chain (DP, RS232C, RJ45)
1531356768314_02487

Borderless Design

Narrow Bezel
Borderless design with its 0.9mm even panel bezel* and 1.8mm BtB(Bezel to Bezel)** size, verifi ed by Nemko***, enables immersive and seamless viewing experiences on assembled video wall screens.
1531356808663_42522

Smart Platform

Built-in SoC* and Synced Playback

The optimized built-in quad-core SoC in the 55VH7B/VM5B, 49VH7C/VM5C can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.
1531356850045_17444

Smart Platform

webOS 2.0

The webOS 2.0 platform provides easy and convenient tools to create contents. LG’s SDK* and technical supports make content development and management easier.
1531356886646_23314

Superior Picture Quality

Clear Viewing Angle

The 55VH7B/VM5B, 49VH7C/VM5C ensures clear picture quality even when installed in stacks of more than four. This is very favorable for the quantity of video walls installed in large spaces.
1531357567150_22558

Superior Picture Quality

Uniform Brightness

LG’s LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new 55VH7B/VM5B, 49VH7C/VM5C generates high visibility and a consistent brightness across the whole screen.
1531357111925_63768

Superior Picture Quality

Video Wall Image Creation

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.
1531357162535_23200

Superior Picture Quality

Image Gap Reduction

The 55VH7B/VM5B, 49VH7C/VM5C includes an image improvement algorithm that can adjust to objects located in the boundary of bezel for a seamless viewing experience.
1531357625545_65326

Enhanced Content Management

LAN Daisy Chain Performance
 A LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware.
1531357247989_43847

Convenient Options

Guide Bracket / Classified Port

A guide bracket is an attachment that ensures the video wall remains flat. The classified in/out port prevents errors when connecting a daisy chain.
1531357289415_85751

Convenient Options

Control Buttons

With 8 control buttons, it’s easy to operate various functions of the 55VH7B/VM5B, 49VH7C/VM5C, such controlling the OSD (On Screen Display) and changing the input source.

Tech Spec

  • Panel

    Panel spec
    Screen Size 49"
    Resolution 1,920 x 1,080 (FHD)
    Brightness (Typ.,Module) 700
  • Connectivity

    Connectivity spec
    Input HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB 3.0, RGB
    Output DP, Audio
    External Control RS232C, RJ45, IR Receiver
  • Physical Specification

    Physical Specification spec
    Bezel Width 0.9mm (Top/Bottom/Left/Right even bezel) / 1.8mm *B to B : Panel Bezel + Panel Bezel
    Monitor Dimension (W x H x D) 1,075.6 x 605.8 x 86.2 mm
    Weight (Head) 17.5 kg
    VESA™ Standard Mount Interface 600 x 400mm
  • Environment Conditions

    Environment Conditions spec
    Operation Temperature 0°C to 40°C
    Operation Humidity 10 % to 80 %
  • Power

    Power spec
    Power Supply 100-240V~, 50/60Hz
    Power Type Built-In Power
  • Standard (Certification)

    Standard (Certification) spec
    Safety UL / cUL / CB / TUV / KC
    EMC FCC Class "A" / CE / KCC
    ErP / Energy Star NA / Yes (Energy Star 7.0)
  • Media Player Compatibility

    Media Player Compatibility spec
    External Media player Attatchable Yes (MP500/MP700)
    OPS type compatible Yes
  • Software Compatibility

    Software Compatibility spec
    SuperSign-c Yes
    SuperSign-w lite Yes
  • Accessory

    Accessory spec
    Basic Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws
    Optional Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100)
