Embedded LG IDB App & webOS
LG IDB: Do More Smartly, SimplyWith the IDB app, based on the webOS smart platform, get rid of the need for a PC or additional software licenses when writing/collaborating on Interactive Digital Board.
Innovative Touch Performance
Intuitive Touch and WritingAdvanced P-Cap touch-technology enables precise touch responses and realistic handwriting. Pen thickness adapts to the writing speed, with support for max. 40 point muli-touch.
All-in-One Meeting ExperienceFor effective collaboration, LG IDB combines once separate processes including participant laptop screen sharing via wired/wireless connection, writing on a shared screen, and saving annotations.
True Color, Wide ViewLG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.
Auto Signal/Touch Switching
Quick and Easy Screen SharingDelivering time-saving functionality, the display can detect input/touch signals and automatically change the source if the new input has higher priority than the previous source.
Assistive Touch Menu
Easy Menu Calling, and ControlProviding optimal ease of use, LG IDB users can run desired functions or change settings by softly pressing the screen to call up the Touch Menu.
* The menu design(GUI) is subject to change without notice
Enjoy a Multi Screen ExperienceProviding enhanced flexibility for users, PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub-screen modes.
Panel spec Screen Size 65” Brightness (cd/㎡) 450 Native Resolution 1,920 x 1,080 (FHD)
Connectivity spec Input HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0 Output Touch USB 2.0 (2) External Control RS232C in/out, RJ45 in

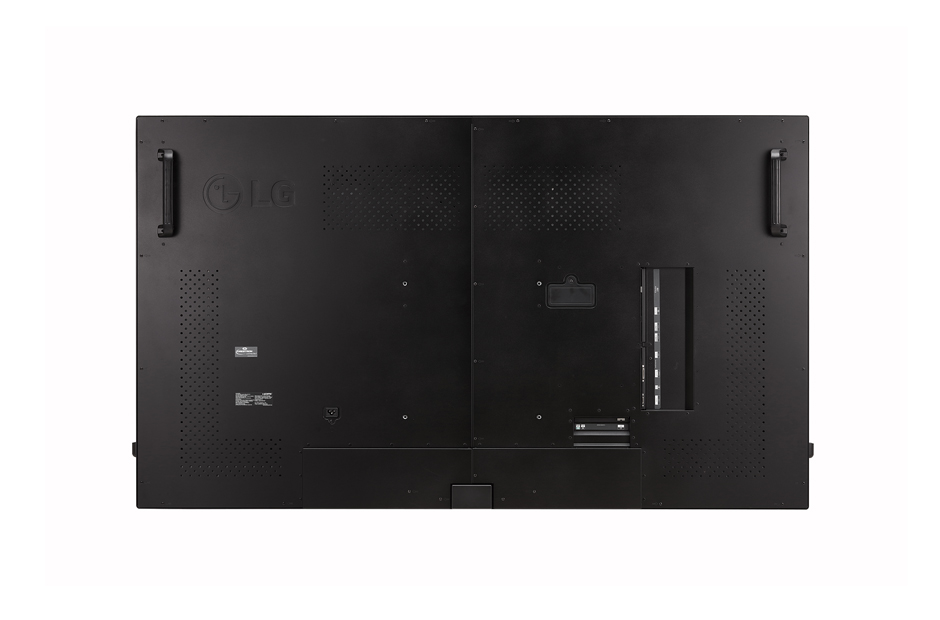

Physical Specification spec Bezel Width 36.1mm(T/L/R), 42.2mm(B) Monitor Dimension (W x H x D) 1,530.8 x 883.8 x 71.7 mm(w/o Handle) Weight (Head) 51 kg Carton Dimensions (W x H x D) 1,650 x 1,035 x 228 mm Packed Weight 59 kg VESA™ Standard Mount Interface 300 x 300 mm
Environment Conditions spec Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %
Power Consumption spec Typ. ≤ 120 W Smart Energy Saving ≤ 85 W
Standard (Certification) spec Safety UL / cUL / CB / TUV / KC EMC FCC Class “A” / CE / KCC
Software Compatibility spec Content Management Software SuperSign Premium Control and Monitoring Software SuperSign Link
Accessory spec Basic Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea) Optional OPS Kit (KT-OPSA)
Touch spec Touch type P-Cap(Ag Metal Mesh) Available object size for touch more than Ø 6 mm Accuracy 2 mm Interface USB 2.0 Protection Glass Thickness 3.2T (Anti-Glare) Multi touch point Max. 40 Points
Screen images are simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.
