Installation ConvenienceNo need for additional installations.
*Add Creative Options
Use Sensors and content for maximum exposure. Add multi-touch, proximity sensors and gestures tailored to the integrator/content provider.
No Extra Media PlayerSince it is possible to operate the signage without a separate media player, it easy to install and reduce total cost of ownership.
Stand-by ScreenEven without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.
Simple Network Management ProtocolSNMP support ensures convenient network management
Wi-Fi SupportMS75A-7BB support wi-fi usb dongle connection for convenient content distribution.
Simple CustomizationSI can easily develop programs suitable for signage by providing a set of commands (SDK) for WebOS, the basic platform of Signage.
OPS CompatibilityCompatible with the Open Pluggable Specification (OPS), users have the flexibility to choose their appropriate media player.
Panel spec Screen Size 49" Resolution 1,920 x 1,080 (FHD)
Connectivity spec Input HDMI, HDMI/OPS, DP, DVI, Audio, USB Output DP, External Speaker External Control RS232C in/out, RJ45 in, IR&Light sensor, Pixel sensor

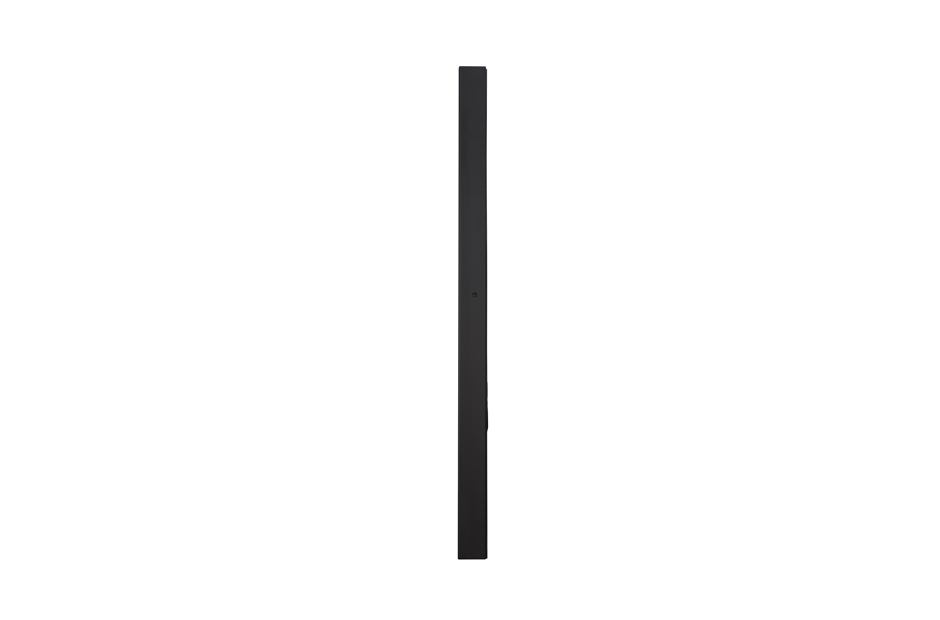

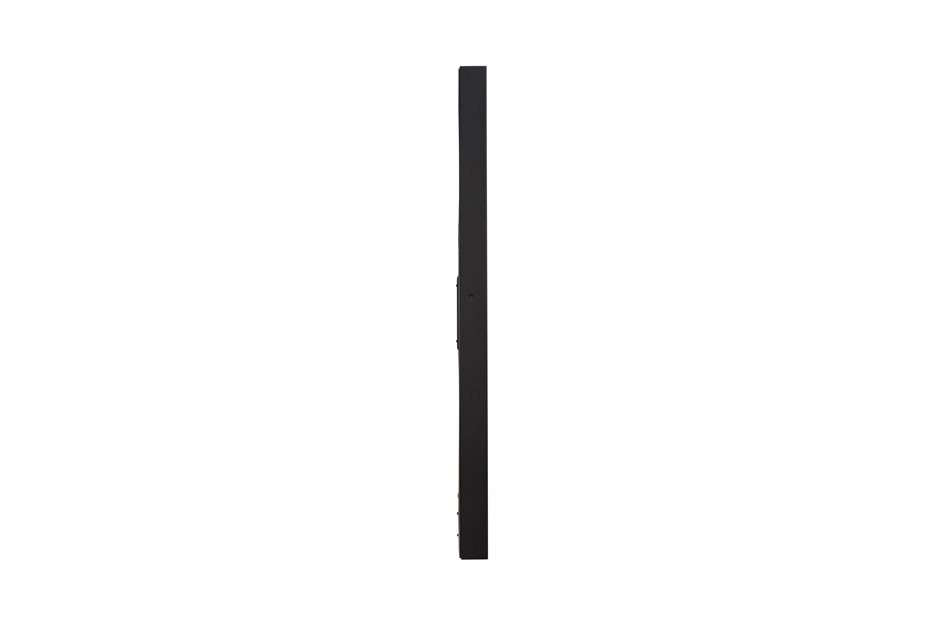

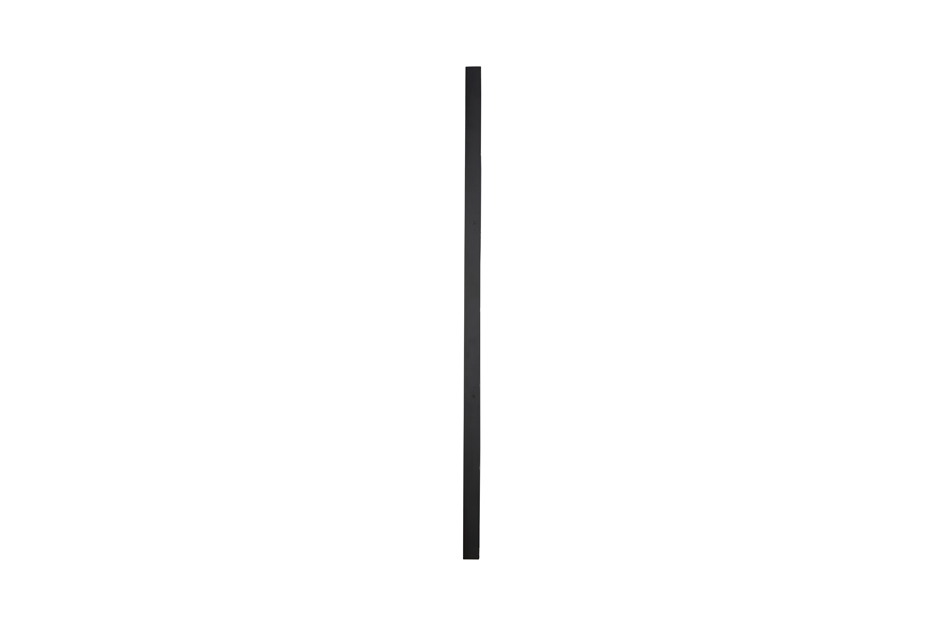

Physical Specification spec Bezel Width 8.4 mm (Even Bezel) Monitor Dimension (W x H x D) 1,095.0 x 625.2 x 37.3 mm Weight (Head) 22.0 kg VESA™ Standard Mount Interface 400 x 400 mm
Environment Conditions spec Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %
Power spec Power Supply 100-240V~, 50/60Hz Power Type Built-In Power
Power Consumption spec Smart Energy Saving 95 W Typ./Max 125 W / 175 W
Standard (Certification) spec Safety UL / cUL / CB / TUV / KC EMC FCC Class "A" / CE / KCC
Media Player Compatibility
Media Player Compatibility spec OPS type compatible No External Media player Attatchable Yes (MP500/MP700), KT-OPSA
Software Compatibility spec Content Management Software SuperSign W Control and Monitoring Software SuperSign C
Accessory spec Basic Remote Controller (include battery 2ea), Power Cord, IR/Light Sensor Receiver, CD (Owner's Manual), HDMI Cable Optional SP-2100, ST-200T, LSW440S, AN-WF500 (Wi-Fi USB dongle), KT-OPSA (OPS Kits), KT-SP0
Screen images are simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.
