Ultra HD Resolution3,840 x 600
Size Ratio86” 58:9
Brightness Uniformity500nit / 700nit
Operation Time24Hr / 7 days
from sides Accurate
FeatureHorizontal / Vertical
SWContent Editing SW for
Bezel4.4mm (Left /Right)
InterfaceHDMI x2 / DPx1 / HDMI
or DVI or OPS, RJ45, IR

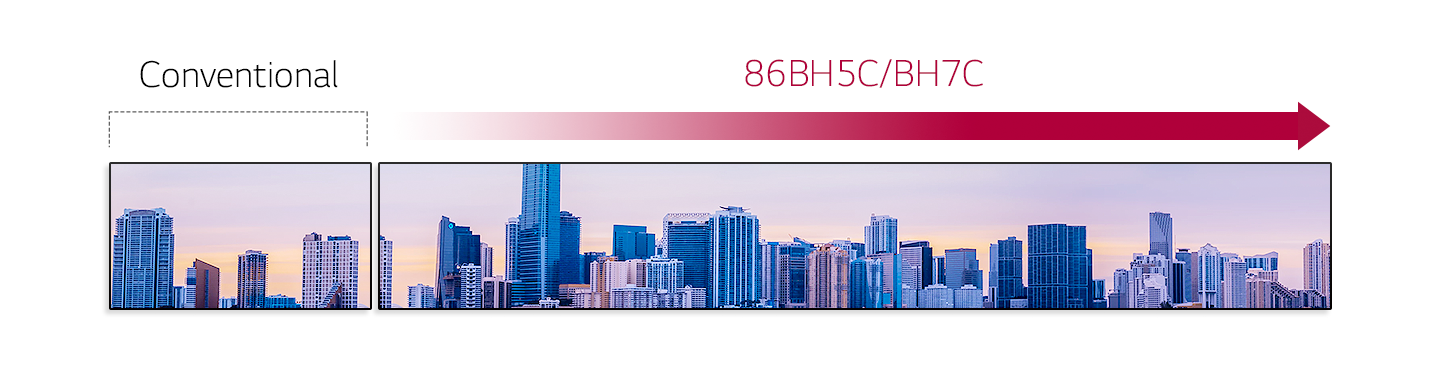

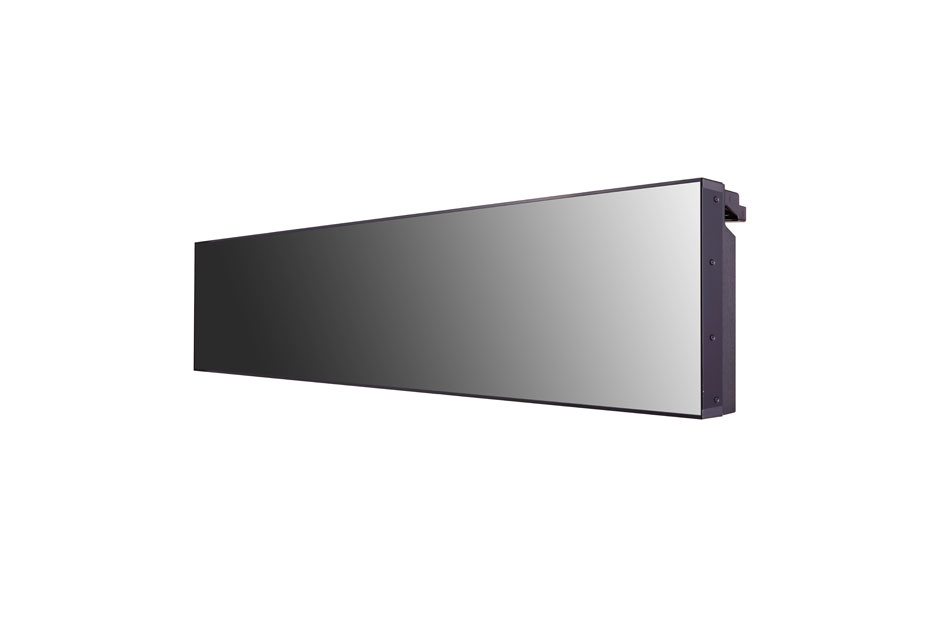

58:9 Display Like Artwork ItselfLG’s own unique 58:9 widescreen format with UHD resolution captures everyone’s attention instantly with its innovative design.
Space Ready for Sending MessagesImpactful way to get your message across or display advertisements even in small spaces. It can be made to look like the displays were originally part of the interior design plan when installed in dead spaces.

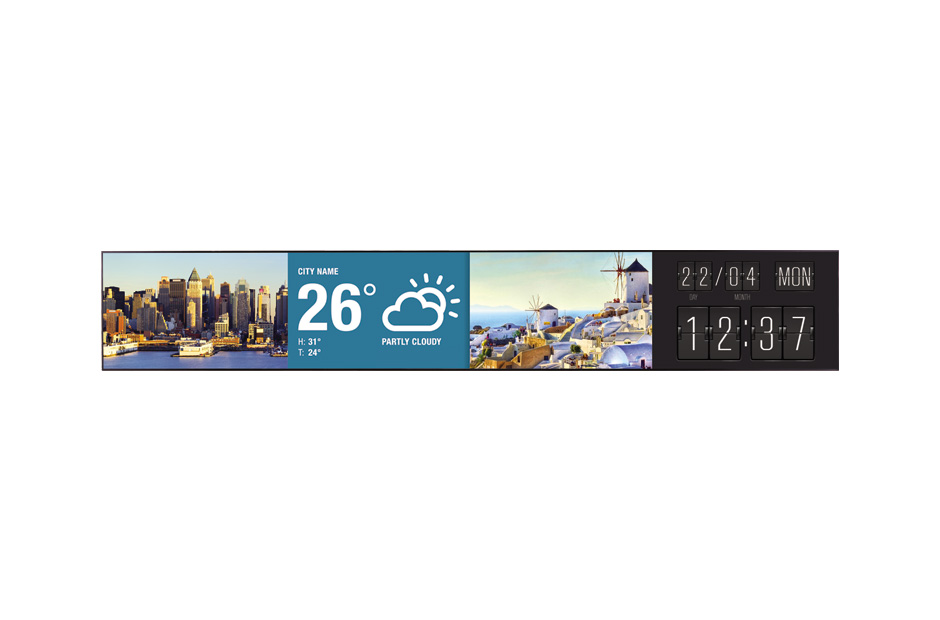

Enhanced Viewing Pleasure and EmotionThe Picture-by-Picture (PBP) feature allows users to compose multi content with display that be split into as many as four parts. Deliver many different advertisements or pieces of information at the same time without calibration effortlessly.
58:9 Content EditingWith the LG SuperSign media editor, you can easily edit images or video clips of original content without any additional editing programs.
Multiple Content CreationUsers can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.
Panel spec Screen Size 86" Resolution 3,840 x 600 (UHD) Brightness 500

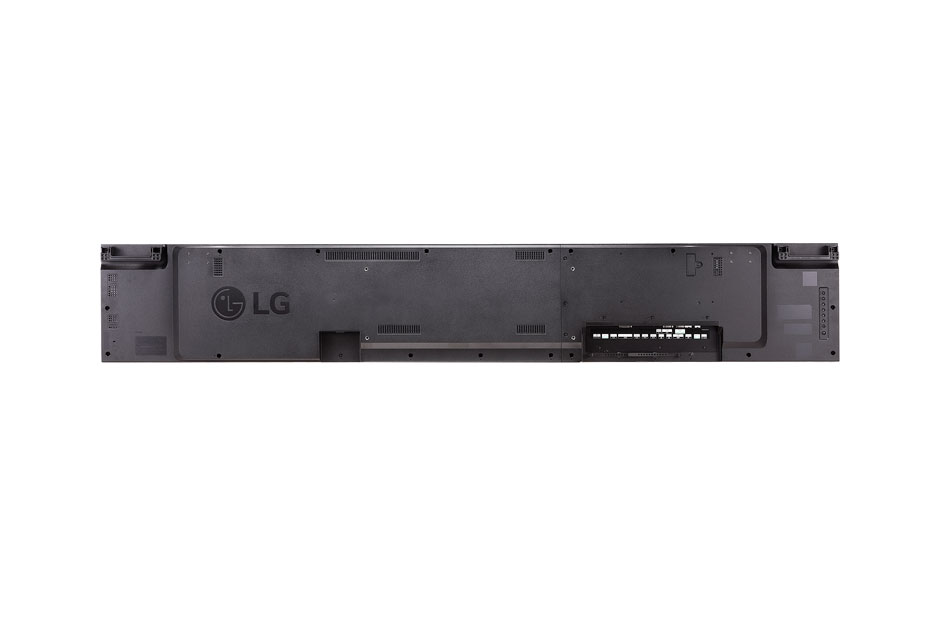

Connectivity spec Input HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card Output Analog Audio External Control RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio
Physical Specification spec Bezel Width 4.4mm (L/R), 5.9mm (T/B) Monitor Dimension (W x H x D) 2,158.3 x 348.5 x 81.7mm Weight (Head) 20.5kg
Environment Conditions spec Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %
Power spec Power Supply 100-240V~, 50/60Hz Power Type Built-In Power
Standard (Certification) spec Safety UL / cUL / CB / TUV / KC EMC FCC Class "A" / CE / KCC ErP Yes (EU Only)
Media Player Compatibility
Media Player Compatibility spec OPS type compatible Yes External Media player Attachable No
Software Compatibility spec SuperSign-c Yes SuperSign-w lite Yes
Accessory spec Basic Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M), Owner's Manual (Website upload) Optional AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available
To download product manuals, please visit the Manual Download Page (Click).
