New Design ConfigurationUltra HD Resolution
32:9 aspect ratio
Multiple Screens4 Divided PBP in
Landscape or Portrait
Operation Time24Hr / 7days
IPS technologyAccurate color
Content ManagementEasy video clips and
image editing with
LG SuperSign Media Editor
New Design Configuration

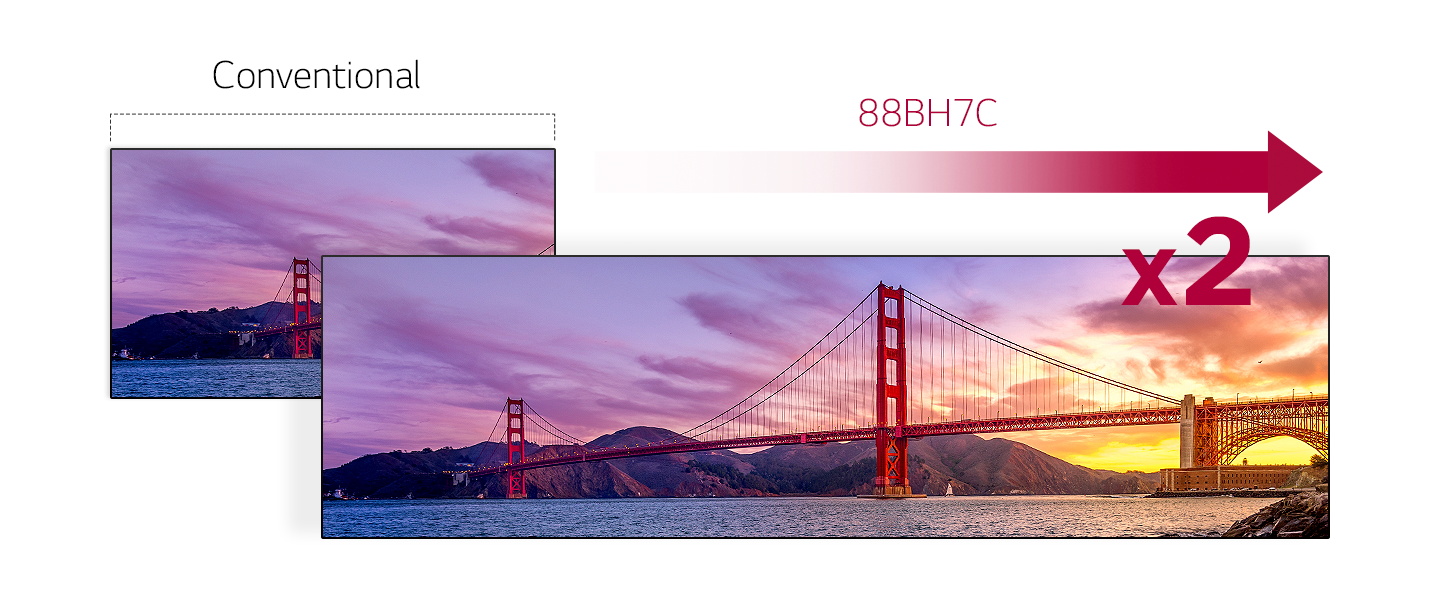

32:9 Display Like Artwork ItselfLG’s own unique 32:9 widescreen format with UHD resolution captures everyone’s attention instantly with its innovative design.
Advanced Picture Quality
Original Ratio for Life-like ImagesReproduces images exactly the way they are even in small spaces and provides more vivid and immersive viewing experience with the bezel-less panel.
Easy Content Management
Multiple Content, One DisplayOne Single Screen (No Calibration with No Bezel) Capable of showing multiple information with a single signage display and optimized for delivering complex content including videos and texts
Panel spec Screen Size 88" Resolution 3,840 x 1,080 (UHD) Brightness (Typ., cd/m²) 700
Connectivity spec Input HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card Output DP, Analog Audio External Control RS232C In/Out, RJ45 In/Out, IR+B Receiver, Pixel Sensor
Physical Specification spec Bezel Width 4.4 mm (L/R), 5.9 mm (U/D) Monitor Dimension (W x H x D) 2,158.3 x 611.2 x 84.8 mm (without handle) Weight (Head) 38 kg Carton Dimensions (W x H x D) 2,274 x 717 x 212 mm Packed Weight 53.2 kg (Pallet included)
Standard (Certification) spec Safety UL / cUL / CB / TUV / KC EMC FCC Class "A" / CE / KC ErP Yes (EU Only)
Software Compatibility spec Content Management Software SuperSign Premium Control and Monitoring Software SuperSign C
Accessory spec Basic Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M), Owner's Manual (Website upload) Optional AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor)
** Stand is not available
To download product manuals, please visit the Manual Download Page (Click).
Screen images are simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.
