A Single Display, Infinite Expandability

LG Video Wall 55EV5D
LG Video Wall 55EV5D


55” Video-wall OLED Signage


Key Feature

  • 1xN ExpandabilityLarger display
    in horizontal position

  • Minimized SeamImmersive Viewing

  • Perfect DesignSlim and Light

  • Perfect BlackLimitless contrast
    and deepest black

  • Perfect Viewing ScreenWide viewing angle

  • Perfect ColorAccurate & Stable
    Color Reproduction

/data/product/feature/2018/20180126/1516927903263_17083.png /data/product/feature/2018/20180126/1516927903282_53513.png

Truly Immersive Screen

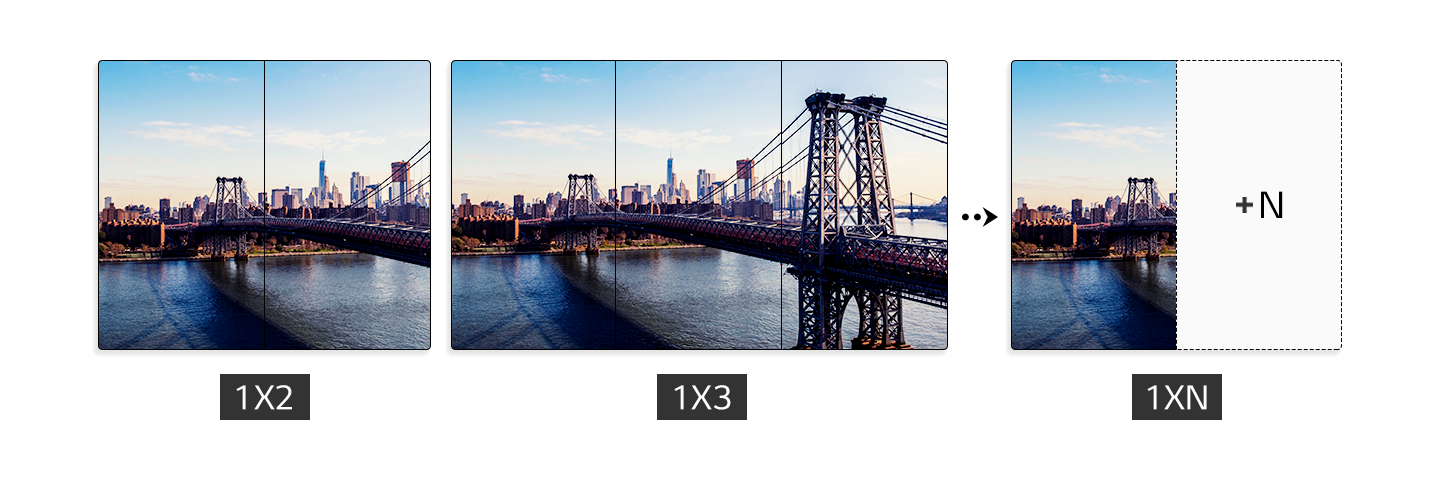

1 x N Expandability

Can enjoy much longer OLED display by tiling up in a horizontal position.

Truly Immersive Screen

Minimized Seam

Minimized seam makes connected displays seem like one perfect screen, providing much more immersive viewing experience and greater advertising impact.

Seam : 3.5mm*
(A to A: Active area to Active area)

* Based on 55EV5D

Application Scene



Tech Spec

  • Panel

    Panel spec
    Screen Size 55
    Resolution 1,920 x 1,080 (FHD)
    Brightness (APL 25%, cd/㎡) 400
  • Connectivity

    Connectivity spec
    Input HDMI, DP, USB
    Output DP, Audio
    External Control RS232C in/out, IR out, RJ45 in/out, IR receiver
  • Physical Specification

    Physical Specification spec
    Bezel Width (Off-bezel) 1.2 / 1.2 / 1.2 / 1.2 mm (U/B/L/R)
    (On-bezel) 5.6 / 5.6 / 5.6 / 11.0 mm (U/B/L/R)
    (Seam) 3.5 mm
    Dimension (W x H x D) (Head)
    1×2: 1,382 x 1,220.9 x 7.9 mm
    1×3: 2,066.3 x 1,220.9 x 7.9 mm
    (T-Con Box) 312.2 x 213.4 x 16 mm
    (Signage Box) 412.6 x 222.4 x 64.3 mm
    Weight (Head)
    1x2: 18.4 kg, 1x3: 27.4 kg
    (T-Con Box) 1.6 kg / ea
    (Signage Box) 4.3 kg / ea
  • Environment Conditions

    Environment Conditions spec
    Operation Temperature 0°C to 40°C
    Operation Humidity 10 % to 80 %
  • Power

    Power spec
    Power Supply 100-240 V~, 50/60 Hz
    Power Type Built-In Power
  • Standard (Certification)

    Standard (Certification) spec
    Safety UL / cUL / CB / TUV / KC
    EMC FCC Class
    ErP Yes (EU Only)
  • Media Player Compatibility

    Media Player Compatibility spec
    OPS type compatible Yes
    External Media player Attachable Yes
  • Software Compatibility

    Software Compatibility spec
    Content Management Software SuperSign CMS
    Control and Monitoring Software SuperSign Link
  • Accessory

    Accessory spec
    Basic Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable (3M x 1ea for Connection between T-Con Box and Signage Box), Power Hanness Cable (3M x 1ea for Connection between T-Con Box and Signage Box), IR Receiver, Regulation Book, Phone to RS232C Gender, Signage Box Jack Cover, T-Con Box Jack Cover, Signage Box Mounting Bracket, T-Con Box Mounting Bracket, FFC Cables (350mm x 4ea, 1600mm x 4ea for Connection between Panel and T-Con Box), Phone
    Optional OPS Kit (KT-OPSA)

To download product manuals, please visit the Manual Download Page (Click).
